Description

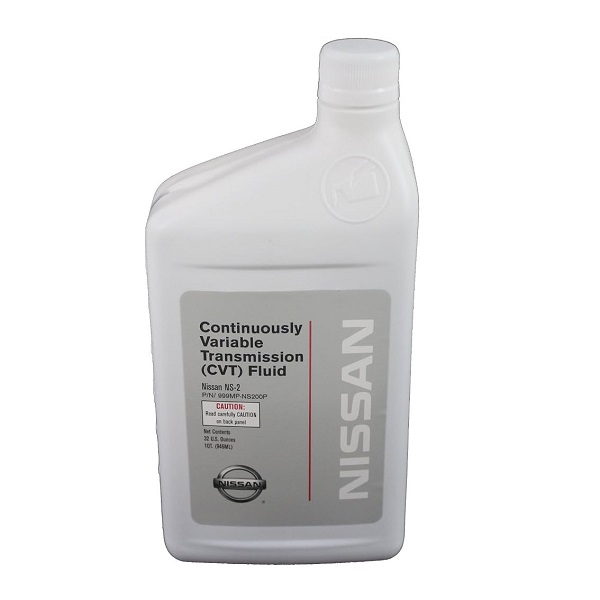

Genuine Nissan NS-2 CVT Transmission Fluid

A genuine Nissan NS-2 CVT fluid protects first- and second-generation XTRONIC Continuously Variable Transmissions by providing exact hydraulic pressure, shear-stable friction, and thermal heat dissipation, preventing steel push-belt slippage, pulley scoring, and costly transmission failure across all local driving conditions in Kenya.

What Is Genuine Nissan NS-2 CVT Fluid?

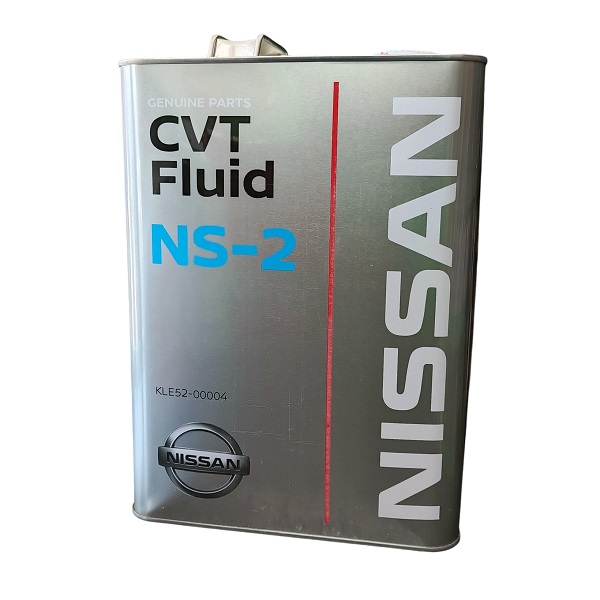

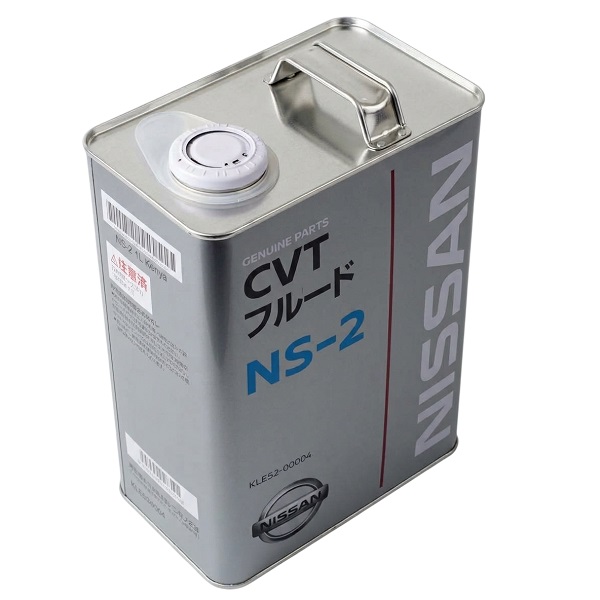

Nissan NS-2 (KLE52-00004) is a specialized, high-viscosity synthetic transmission fluid engineered specifically for Nissan XTRONIC CVT gearboxes (primarily JATCO JF011E and RE0F10A/RE0F09A series). Unlike traditional automatic transmission fluids (ATF) or general-purpose oils, NS-2 is formulated with specific metal-on-metal friction modifiers, anti-foaming agents, and shear-stable synthetic base oils designed to operate under severe hydraulic pressures (up to 60+ bar).

Also See: Genuine Nissan Engine Oils

What Does Genuine Nissan NS-2 CVT Fluid Do?

CVT transmissions do not use traditional fixed planetary gears. Instead, power is transmitted via a steel push-belt wrapped around two variable-diameter steel pulleys.

Key functions of genuine Nissan NS-2 CVT fluid include:

• Metal-on-Metal Friction Control: Creates a high-friction molecular boundary between the steel push-belt and smooth pulley sheaves to prevent catastrophic belt slippage.
• High-Pressure Hydraulic Actuation: Acts as the hydraulic fluid that drives internal spool valves and actuates hydraulic pulley pistons to change drive ratios instantly.
• Heat Dissipation & Thermal Stability: Absorbs severe friction heat generated inside the gearbox and transfers it to the transmission oil cooler, maintaining stable operating temperatures.
• Wear & Oxidation Protection: Protects delicate valve body solenoids, planetary reduction gears, and bearings from pitting, varnish buildup, and corrosion.

Common Nissan Vehicles in Kenya That Use NS-2 CVT Fluid

Nissan NS-2 fluid is specified for earlier-generation (typically pre-2013/2014) Nissan CVT models driven in Kenya. Below is a compatibility breakdown:

Nissan Model	Generation / Model Years	CVT Gearbox Code	Required Fluid Specification
Nissan X-Trail	T31 (2007–2013)	RE0F10A (JF011E)	Genuine Nissan NS-2
Nissan Qashqai / Dualis	J10 (2007–2013)	RE0F10A (JF011E)	Genuine Nissan NS-2
Nissan Tiida / Latio / Wingroad	C11 / Y12 (2005–2012)	RE0F08A / RE0F10A	Genuine Nissan NS-2
Nissan Serena	C25 / C26 (Early)	RE0F10A (JF011E)	Genuine Nissan NS-2
Nissan Teana / Murano	J31 / J32 / Z50 / Z51 (V6)	RE0F09A (JF010E)	Genuine Nissan NS-2
Nissan Bluebird Sylphy	G11 (2005–2012)	RE0F10A (JF011E)	Genuine Nissan NS-2

Crucial Warning: Never mix NS-2 with standard ATF or substitute it with NS-3 unless specified by factory service bulletins. Always confirm fluid spec on the transmission dipstick cap or using your vehicle’s VIN/chassis number prior to purchasing.

Contact Doctor Carz Auto today via WhatsApp or call +254 715 803 098 to confirm fitment for your vehicle chassis code or to schedule a CVT fluid change in Nairobi.

Signs Your Nissan Needs an NS-2 CVT Fluid Change

Operating on aged, burnt, or contaminated NS-2 fluid leads to severe transmission failure. Watch for the following warning indicators:

• Transmission Judder / Shudder Under Acceleration: Jerking or shaking when accelerating from a standstill or at low speeds.
• Whining or Buzzing Noise from Transmission: Pump cavitation caused by breakdown of fluid viscosity and anti-foaming properties.
• RPM Spike / Belt Slippage: Engine revs flare up high without an immediate increase in vehicle speed.
• Delayed Shift Engagement: Distinct lag when shifting from Park (P) to Drive (D) or Reverse (R).
• Dark Green / Brown / Burnt Fluid: Fresh NS-2 is clear green. Fluid that turns dark brown, black, or smells burnt must be replaced immediately.

When Should Nissan NS-2 CVT Fluid Be Replaced?

Because traffic conditions in Kenya involve frequent idling, stop-and-go city traffic, and ambient heat, severe-service intervals apply:

• Recommended Replacement Interval: Drain and refill every 30,000 km to 40,000 km.
• Full Service (Fluid + Filters): Replace both the internal pan filter strainer and the auxiliary paper cooler filter along with fresh NS-2 fluid every 40,000 km.

How to Get the Best Performance and Longest Transmission Life

• Replace CVT Filters Simultaneously: Changing fluid without replacing the pan strainer and paper cooler filter recirculates metal particles back into the new fluid.
• Avoid Overfilling or Underfilling: Fluid level must be checked using the dipstick while the transmission is warm (around 50°C–80°C) with the engine running in Park.
• Clean Pan Magnets: Always drop the transmission pan and clean accumulated metal dust off the internal magnets during service.

Replacing and Servicing Your Nissan NS-2 CVT Fluid

Professional CVT servicing at our Kasarani workshop follows a strict protocol:

1. Raise the vehicle safely on a lift and remove the transmission pan drain plug.
2. Drain approximately 3.5 to 4.5 liters of old fluid into a calibrated measuring container.
3. Unbolt the transmission pan, clean residual sludge and magnet filings, replace the main pan filter strainer, and fit a new pan gasket.
4. Replace the auxiliary paper cooler filter cartridge and housing O-ring.
5. Refill through the dipstick tube with the exact amount of fresh genuine Nissan NS-2 fluid.
6. Start engine, cycle through gears, monitor fluid temperature, check dipstick level, and scan for OBD-II fault codes.

For technical gearbox servicing, visit our specialized service garage in Kasarani, Nairobi.

Why Choose Nissan NS-2 CVT Fluid from Doctor Carz Auto?

At Doctor Carz Auto in Kasarani, Nairobi, we stock 100% authentic, sealed genuine Nissan NS-2 CVT fluid (KLE52-00004) alongside original replacement pan filters, paper cooler cartridges, and gaskets. Our specialists cross-reference your chassis number to ensure your transmission receives the exact factory-specified fluid.

Need Genuine Nissan NS-2 CVT Fluid?

Contact Doctor Carz Auto today to verify fluid compatibility, check pricing, or book a transmission service.

• Call/WhatsApp: +254 715 803 098
• Email: nissan@doctorcarzauto.co.ke
• Location: Kasarani, Seasons Behind Jalyn Junior School, Nairobi, Kenya

FAQs About Nissan NS-2 CVT Fluid

• Q1: What is Nissan NS-2 CVT fluid?
  A: It is a genuine synthetic transmission fluid specifically formulated for first- and second-generation Nissan XTRONIC Continuously Variable Transmissions (such as JF011E).
• Q2: Can I use NS-3 fluid instead of NS-2 in my older Nissan?
  A: No. NS-3 has a lower viscosity designed for newer CVT pumps. Using lower-viscosity NS-3 in a transmission calibrated for NS-2 can cause hydraulic pressure drops, belt slippage, and internal wear unless explicitly approved by a factory service bulletin.
• Q3: What color is genuine Nissan NS-2 CVT fluid?
  A: Genuine Nissan NS-2 fluid is translucent green.
• Q4: How many liters of NS-2 fluid are required for a standard drain and refill?
  A: A standard pan drain and refill typically takes between 3.5 and 4.5 liters. A complete overhaul or dry system fill takes approximately 7.5 to 8.5 liters.
• Q5: What happens if I use generic universal ATF fluid in my Nissan CVT?
  A: Generic ATF lacks the required steel-on-steel friction coefficient. The steel push-belt will slip across the pulleys, destroying the friction surfaces and causing complete transmission failure within a short period.
• Q6: How do I verify if my vehicle uses NS-2 fluid?
  A: Check the warning label on the transmission dipstick, or share your chassis/VIN number with our Doctor Carz Auto technical team via WhatsApp (+254 715 803 098).
