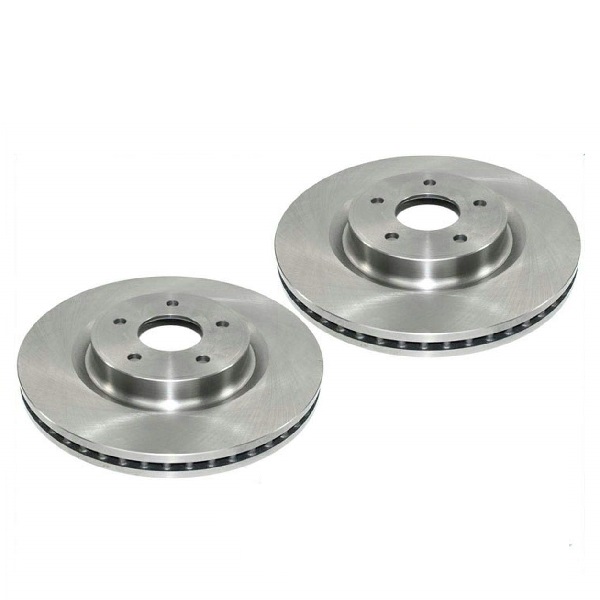

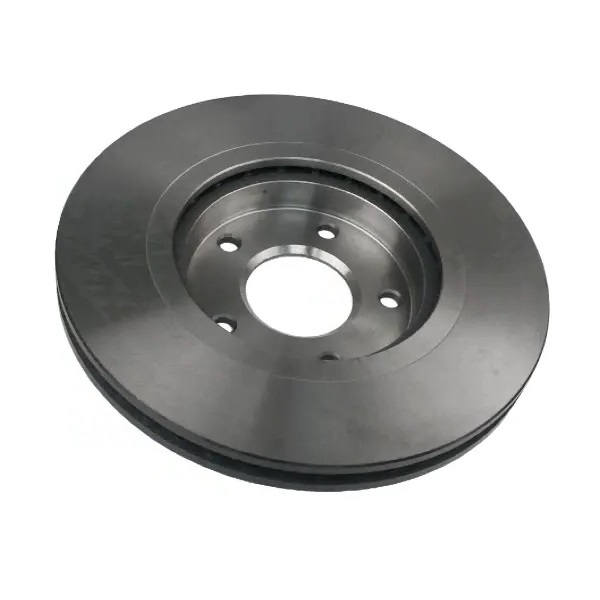

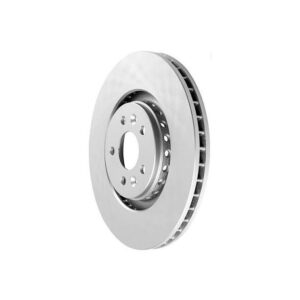

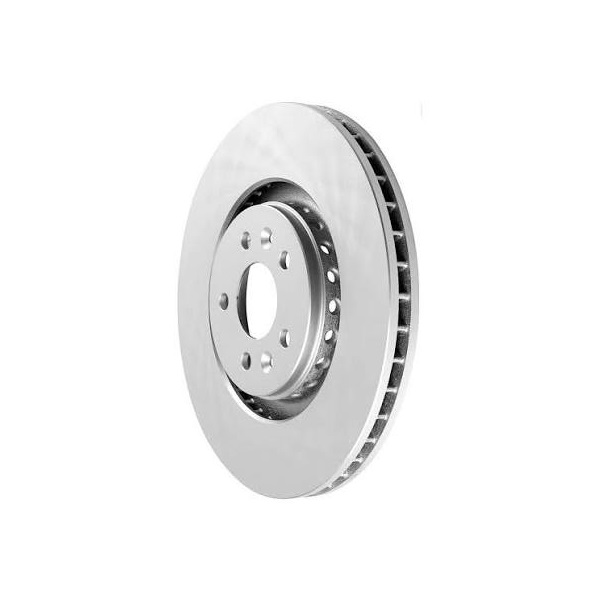

Genuine Nissan Front Brake Discs / Rotors

A genuine Nissan front brake disc rotor set provides high-friction kinetic energy absorption, rapid thermal dissipation, and structural resistance to thermal warping by serving as the primary rotating friction surface for the front brake pads, maintaining firm pedal feedback, smooth deceleration, and short stopping distances across all driving conditions in Kenya.

What Are Genuine Nissan Front Brake Discs / Rotors?

Front brake discs (rotors) are precision-machined heavy-duty cast iron alloy discs mounted directly to the front wheel hub assemblies on each side of the front axle. They rotate at the exact speed of the front wheels. Modern Nissan front brake rotors are ventilated—featuring internal cooling vanes sandwiched between two outer friction faces—to actively pump cooling air through the rotor as it spins. When you apply the brake pedal, the front brake caliper squeezes the front brake pads against both outer faces of the spinning rotor to slow down the vehicle.

Also See: Genuine Nissan Rear Brake Discs

What Do Genuine Nissan Front Brake Discs / Rotors Do?

Front brake rotors act as the primary heat sink for the vehicle’s braking system. Because the front axle carries up to 70% of the vehicle’s weight during deceleration, front rotors absorb and dissipate extreme thermal energy.

Key functions of genuine Nissan front brake rotors include:

• Kinetic Energy Conversion: Converts vehicular motion into heat through mechanical friction against the front brake pads.
• Ventilated Cooling Performance: Internal cooling vanes create a centrifugal fan effect that pulls air from the center and expels hot gases outward, preventing fluid boiling and brake fade.
• Structural Deformation Resistance: Formulated with high-carbon cast iron alloys that resist surface cracking, thermal expansion warping, and thickness variation.
• Vibration-Free Braking Surface: Precision-lathed parallel surfaces ensure smooth pad contact without causing steering wheel shake or pedal pulsation.

Common Nissan Vehicles in Kenya That We Service Front Brake Rotors

Front brake rotor outer diameter (e.g., 258mm, 280mm, 296mm, 320mm), hat height, bolt hole count, and disc thickness vary significantly by vehicle chassis, engine size, and weight class. Below is a compatibility overview:

Nissan Model	Generation / Model Years	Engine / Drivetrain Variants	Front Brake Rotor Fitment & Spec Notes
Nissan Note / March	E11 / E12 / K12 / K13	HR12DE, HR15DE, CR12DE	Compact vented front rotors; 4-lug bolt pattern.
Nissan Tiida / Latio / Wingroad	C11 / Y12	HR15DE, MR18DE	Standard 4-lug or 5-lug vented front disc rotors.
Nissan X-Trail	T30 / T31 / T32	QR20DE, QR25DE, MR20DD	Heavy-duty 5-lug vented front rotors (typically 296mm or 320mm).
Nissan Qashqai / Dualis	J10 / J11	HR16DE, MR20DE, R9M (Diesel)	High-thermal-capacity 5-lug vented front disc rotors.
Nissan Serena	C24 / C25 / C26 / C27	QR20DE, MR20DE, MR20DD	High-capacity vented front rotors engineered for passenger loads.
Nissan NV200 / AD Van	M20 / Y12	HR16DE, CR12DE, HR15DE	Commercial-spec long-wear front brake rotors.
Nissan Navara / NP300	D40 / D23	YD25DDTi, YS23DDT	Heavy-duty 6-lug thick vented front rotors for towing/cargo.

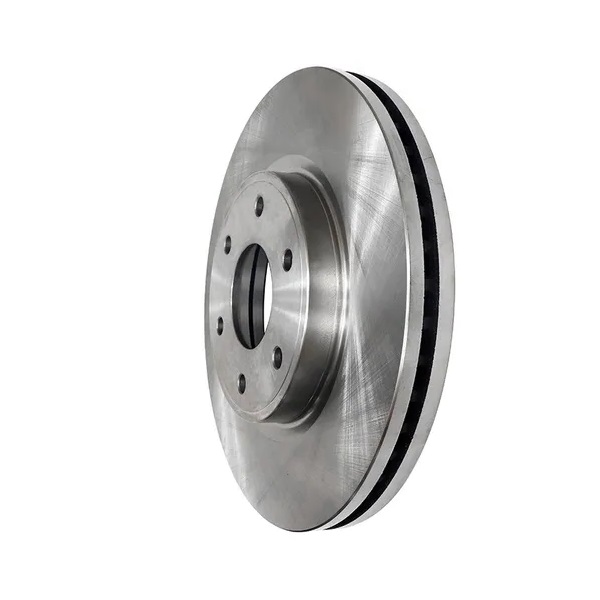

Nissan Patrol	Y61 / Y62	ZD30DDTi, TB48DE, VK56VD	Large-diameter high-carbon multi-lug heavy-duty vented front rotors.

Note: Rotor specifications differ between standard gasoline, diesel, and turbo variants. We strongly recommend confirming exact rotor dimensions using your vehicle’s VIN or chassis number prior to purchasing.

Contact Doctor Carz Auto today via WhatsApp or call +254 715 803 098 to confirm fitment for your vehicle chassis code or to arrange local delivery/installation in Nairobi.

Also See: Genuine Nissan Front Brake Pads

Signs Your Nissan Front Brake Rotors Need Replacement

Worn or damaged front brake rotors reduce stopping power and accelerate brake pad wear. Watch for the following warning indicators:

• Steering Wheel Wobble / Judder Under Braking: Violent shaking or vibration through the steering wheel when depressing the brake pedal, caused by warped rotor faces or uneven Disc Thickness Variation (DTV).
• Loud Metallic Grinding Noise: Deep scoring or gouging caused by worn-out brake pad backing plates digging into the rotor iron face.
• Deep Circular Grooves or Ridges: Visually apparent lip ridges on the outer edge or deep concentric scoring rings across the friction surface.
• Hard Brake Pedal Pulsation: The brake pedal pulses up and down against your foot during gradual stops.
• Heat Spots or Surface Cracks: Blueish discoloration patches or microscopic thermal stress cracks on the rotor surface caused by extreme overheating.

When Should Nissan Front Brake Rotors Be Replaced?

Front brake rotors undergo friction wear and thermal thinning over time.

• Standard Service Lifespan: Replace front brake rotors every 50,000 km to 80,000 km (typically lasting through two sets of front brake pads).
• Minimum Thickness (MIN TH) Stamping: Every rotor has a factory-stamped minimum operational thickness limit cast into the hat flange (e.g., discard if worn down by 2.0 mm total from original thickness). Replace immediately if thickness drops below this specification.
• Inspect at Every Pad Replacement: Measure rotor thickness with a micrometer and check for runout every time new brake pads are installed.

How to Choose the Right Front Brake Rotors for Your Nissan

Consider the following technical parameters when selecting replacement front brake rotors:

• Exact Dimensional Parameters: Verify outer diameter, overall hat height, center bore diameter (e.g., 68mm), and stud bolt circle PCD (e.g., 4×114.3, 5×114.3, 6×114.3).
• High-Carbon Iron Alloy Composition: High-carbon metallurgy offers quiet operation, dampens vibration, and withstands local thermal shock in stop-and-go Nairobi traffic.
• Coated vs. Uncoated Surfaces: Premium anti-corrosion zinc or electro-coated rotor hats prevent rust buildup on hub mating surfaces.

How to Get the Best Performance and Longest Rotor Life

• Always Fit Fresh Brake Pads: Never install old, unevenly worn brake pads on brand-new brake rotors, as this instantly scores the new rotor surface.
• Clean Wheel Hub Mating Face: Rust or dirt sandwiched between the wheel hub flange and the new rotor hat causes artificial lateral runout and pedal pulsation.
• Torque Wheel Lug Nuts to Factory Spec: Unevenly torqued wheel nuts stretch the rotor hat unevenly, leading to premature thermal warping.
• Execute Proper Bedding-In: Perform 8–10 moderate decelerations from 60 km/h to 20 km/h without coming to a complete stop to transfer an even film of friction material onto the rotor.

Replacing and Installing Your Nissan Front Brake Rotors

Replacing front brake rotors is a technical service procedure:

1. Loosen lug nuts, safely jack up the front axle on jack stands, and remove the front wheels.
2. Unbolt the brake caliper body and support it with a mechanic hook (do not let it hang by the rubber brake hose).
3. Unbolt the heavy caliper torque anchor bracket from the steering knuckle.
4. Remove rotor retaining screws (if equipped) and slide the old brake rotor off the wheel studs.
5. Wire-brush rust off the wheel hub flange and wipe down the new rotor with brake cleaner spray to remove protective shipping oil.
6. Mount the new rotor, reattach caliper anchor bracket, compress caliper piston, install new pads, reassemble caliper, and torque all fasteners.

For safety-critical brake replacement, visit our specialized service garage in Kasarani, Nairobi.

Also See: Genuine Nissan Rear Brake Pads

Why Choose Nissan Front Brake Rotors from Doctor Carz Auto?

At Doctor Carz Auto in Kasarani, Nairobi, we stock genuine OEM and high-carbon replacement front brake disc rotors engineered for complete Nissan stopping stability. Our specialists cross-reference your chassis number to guarantee exact rotor diameter, bolt pattern, and hat height for wobble-free, whisper-quiet braking performance.

Need the Right Nissan Front Brake Discs / Rotors?

Contact Doctor Carz Auto today to verify fitment, check pricing, or schedule professional front rotor installation.

• Call/WhatsApp: +254 715 803 098
• Email: nissan@doctorcarzauto.co.ke
• Location: Kasarani, Seasons Behind Jalyn Junior School, Nairobi, Kenya
• Website: https://doctorcarzauto.co.ke/

FAQs About Nissan Front Brake Discs / Rotors

• Q1: What do genuine Nissan front brake rotors do?
  A: They provide the spinning steel contact surface that front brake pads squeeze against to slow down and stop your vehicle through mechanical friction.
• Q2: What causes steering wheel vibration when braking?
  A: Steering wheel shaking under braking is typically caused by warped front brake rotors or Disc Thickness Variation (DTV) resulting from excessive heat or rust on the hub face.
• Q3: Can I resurface (skim) my Nissan front brake rotors instead of replacing them?
  A: Yes, provided the remaining rotor thickness after lathe machining remains strictly above the factory Minimum Thickness (MIN TH) limit stamped on the rotor hat. If it falls below this limit, it must be replaced.
• Q4: Should front brake rotors be replaced in pairs?
  A: Yes. Front brake rotors must always be replaced in pairs (left and right together) to maintain equal stopping force and prevent steering pull during hard braking.
• Q5: What is the difference between solid and ventilated brake rotors?
  A: Solid rotors consist of a single solid iron disc (often used on lighter rear axles). Ventilated rotors have internal cooling channels sandwiched between two disc faces, allowing air to flow through and cool high-temperature front brakes.
• Q6: How do I verify which front brake rotors fit my Nissan model?
  A: Share your vehicle chassis or VIN number with our Doctor Carz Auto technical team via WhatsApp (+254 715 803 098) for exact fitment confirmation.
